| Section Shape |
Round |
| Secondary Or Not |
Non-secondary |
| Application |
Boiler Pipe |
| Certification |
CE |
| Surface Treatment |
Galvanized |
| Standard |
BS |
| Thickness |
0.8'-11.25' |
| Place of Origin |
China (Mainland) |
| Grade |
ASTM A106 |
| Outer Diameter |
1/8'-24' |
| Special Pipe |
API Pipe |
| Alloy Or Not |
Non-alloy |

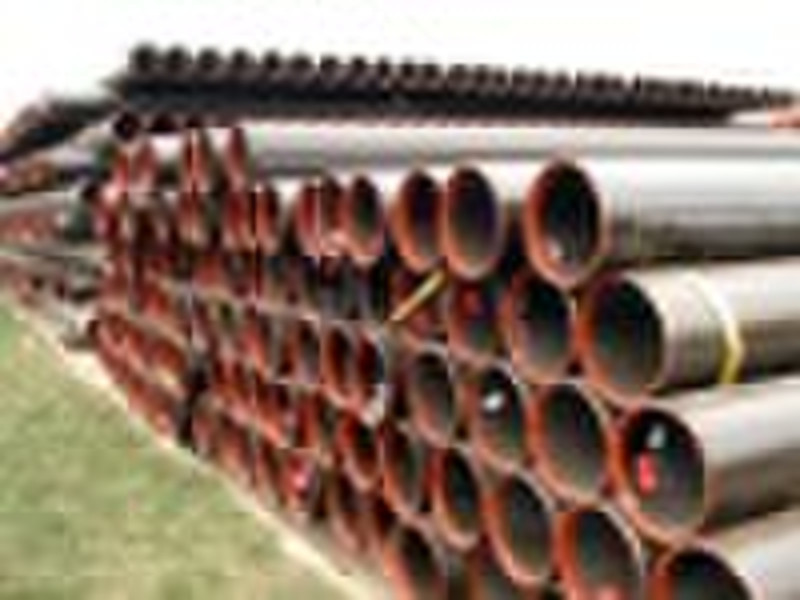

Hot rolling seamless pipe Length: 5-12m Outer diameter: 1/8'-24' Thickness: 0.8'-11.25' Grade: ASTM A106 Standard: BS, ASME, DIN,JIS, GB, ANSI Standard GB/T8162,GB/T8163 ASTMA106/A53Gr.B Material O.D 1/4-24,13mm-610mm WT Sch20,sch40,sch60,sch80,sch100,sch120,sch160,xxs Length 5-12m,6m fixed,9m fixed Usage Structure use, water transport, building, machinery, traffic,aviation,oil developmentetc. OD Tellerance D<=50MM,+-0.5MM,D>=50MM,+-1% Wt Tellerance WT +-12.5% Chemical C:0.17-0.24%, Si:0.17-0.37%, MN:0.35-0.65%,P<=0.035%,S<=0.035%,Cu<=0.25%,Ni<=0.25%,Cr<=0.25% Tensile strength 390MPA Yield point WT<=16mm,245MPA WT 16-30MM 235MPA Elong-Ation 20 Other test HY, ET according to request Surface Black paint as rusty protect Ends 2below plain ends, 2 above beveled ends Methord 140mm below cold drawn, 140mm above hot rolled, 273mm above hot expand Packing 6 steel strip bundles, caps, plastic wrap, loading belt
